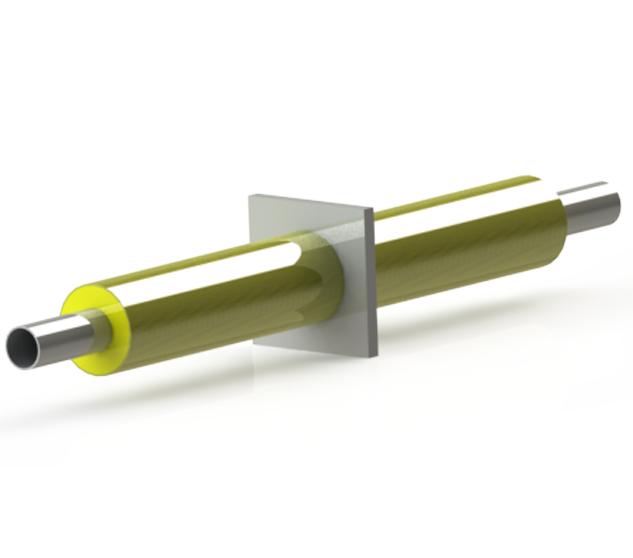

Punctele fixe preizolate pot fi livrate cu sau fără senzori pentru semnalizare a avaeriilor.
Diametrele și grosimile izolației care nu sunt incluse in tabel pot si fabricate la cerere.
| Teava otel | Teava manta HDPE | L | ||||||
| Dimensiuni | ||||||||
| DN | d | Izolatie | Placa | Izolatie | Placa | 2x | Placa | |
| standard | marita | izolatie | ||||||
| [mm] | D | B | D | B | D | B | L | |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| 20 | 26.9 | 90 | 190×8 | 110 | 160×8 | 125 | 180×8 | 1500 |
| 25 | 33.7 | 90 | 190×8 | 110 | 160×8 | 125 | 180×8 | 1500 |
| 32 | 42.4 | 110 | 210×8 | 125 | 180×8 | 140 | 190×8 | 1500 |
| 40 | 48.3 | 110 | 210×8 | 125 | 180×10 | 140 | 190×10 | 1500 |
| 50 | 60.3 | 125 | 240×10 | 140 | 190×10 | 160 | 240×10 | 1500 |
| 65 | 76.1 | 140 | 260×10 | 160 | 240×10 | 180 | 260×10 | 1500 |
| 80 | 88.9 | 160 | 290×14 | 180 | 260×14 | 200 | 280×14 | 1500 |
| 100 | 114.3 | 200 | 350×20 | 225 | 305×20 | 250 | 330×20 | 1500 |
| 125 | 139.7 | 225 | 380×20 | 250 | 330×20 | 280 | 360×20 | 1500 |
| 150 | 168.3 | 250 | 410×20 | 280 | 360×20 | 315 | 395×20 | 1500 |
| 200 | 219.1 | 315 | 500×26 | 355 | 440×26 | 400 | 480×26 | 1500 |
| 250 | 273 | 400 | 600×30 | 450 | 530×30 | 500 | 580×30 | 1500 |
| 300 | 323.9 | 450 | 700×30 | 500 | 580×30 | 560 | 640×30 | 2000 |
| 350 | 355.6 | 500 | 760×30 | 560 | 640×30 | 630 | 710×30 | 2000 |
| 400 | 406.4 | 560 | 820×36 | 630 | 710×36 | 710 | 790×36 | 2000 |
| 450 | 457 | 630 | 710×36 | 710 | 790×36 | 2000 | ||
| 500 | 508 | 710 | 890×50 | 800 | 890×50 | 2000 | ||
| 600 | 610 | 800 | 1000×50 | 900 | 1100×50 | 2000 | ||
| 700 | 711 | 900 | 1100×60 | 1000 | 1200×80 | 2000 | ||
| 800 | 813 | 1000 | 1210×60 | 1100 | 1400×80 | 2500 | ||
| 900 | 914 | 1100* | 1400×60 | 2500 | ||||
| 1000 | 1016 | 1200* | 1500×60 | 2500 | ||||
